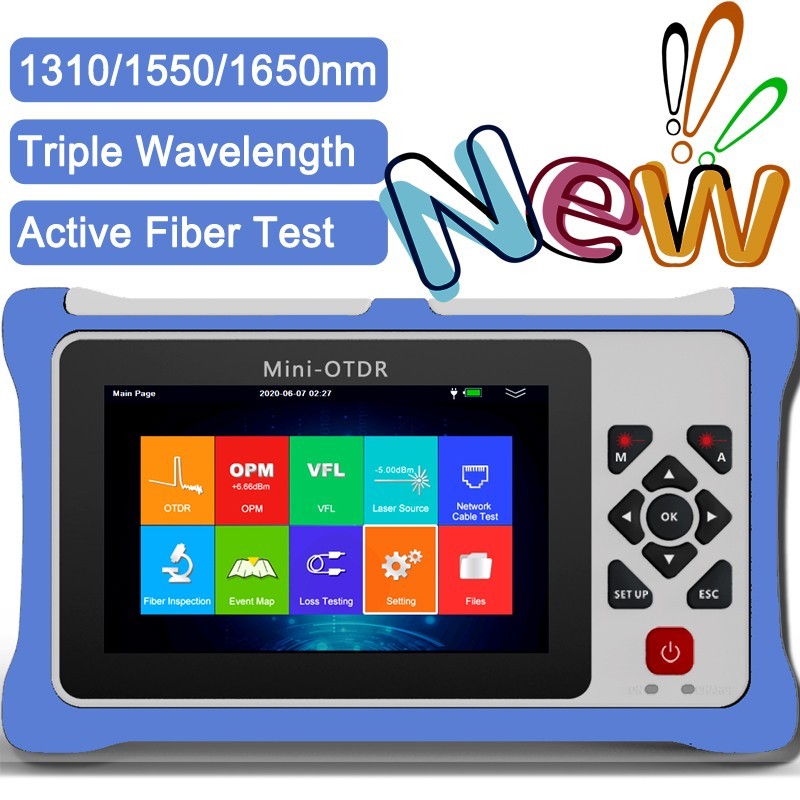

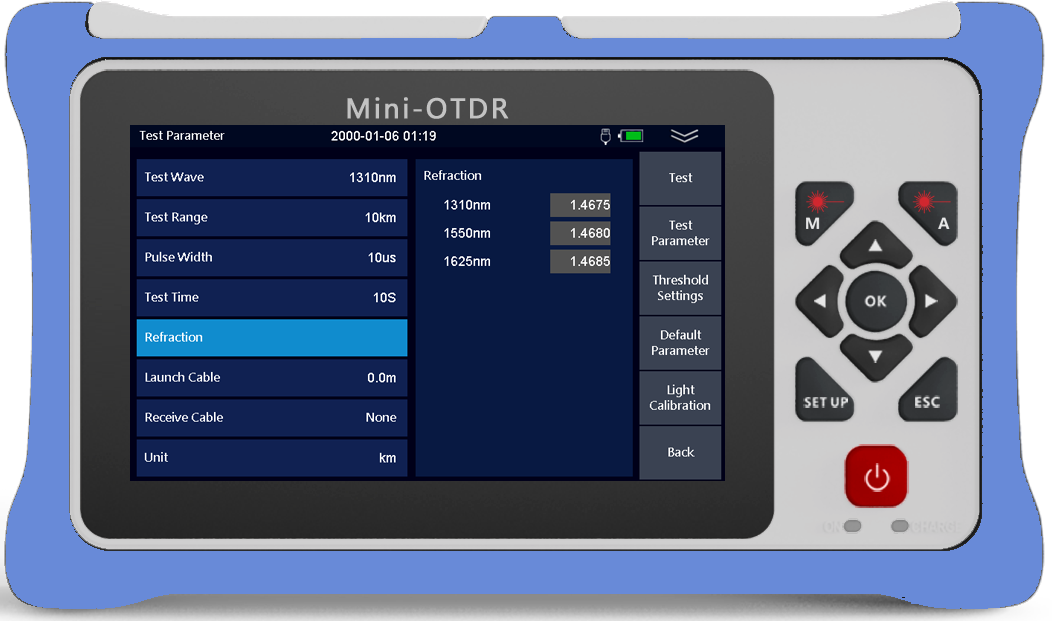

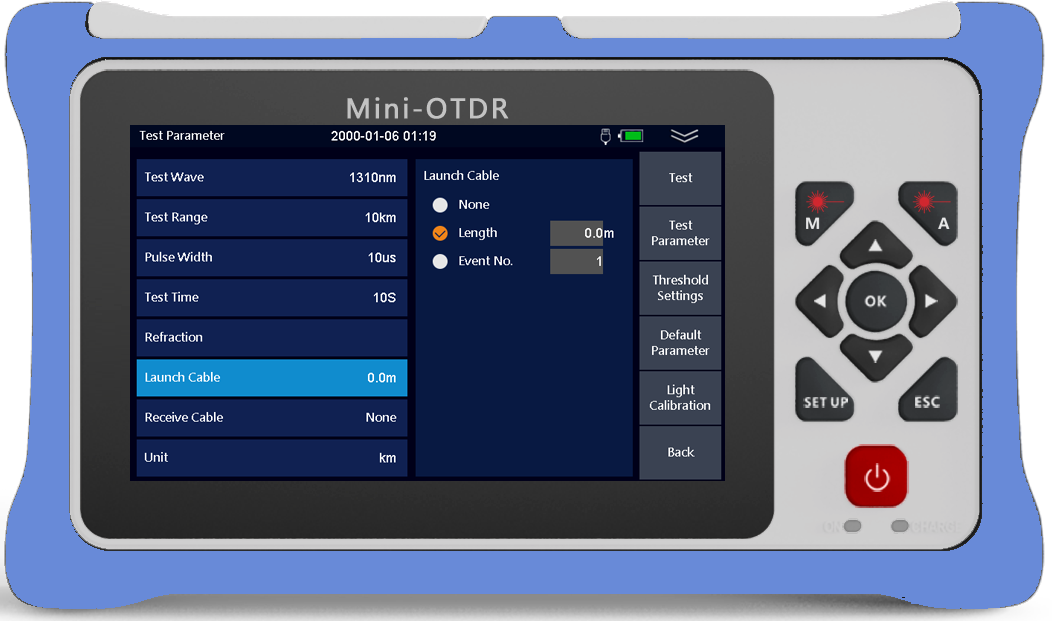

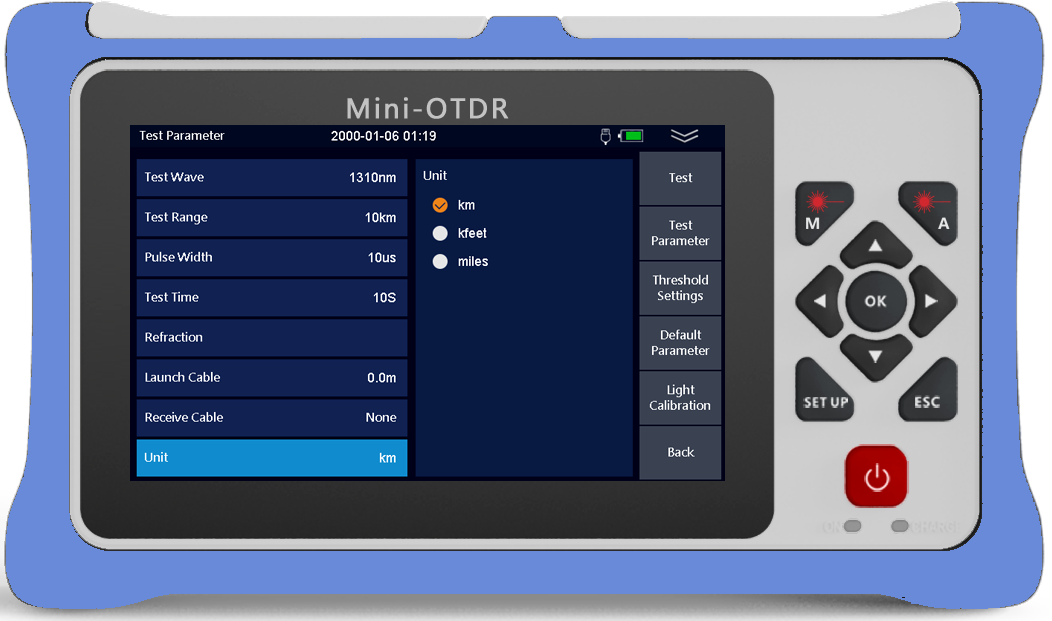

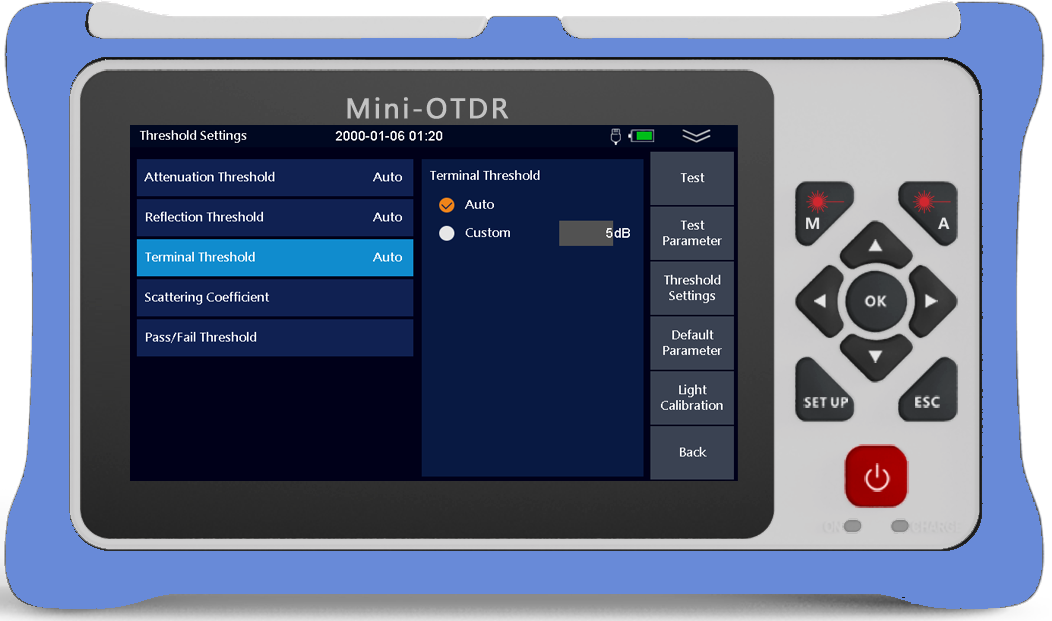

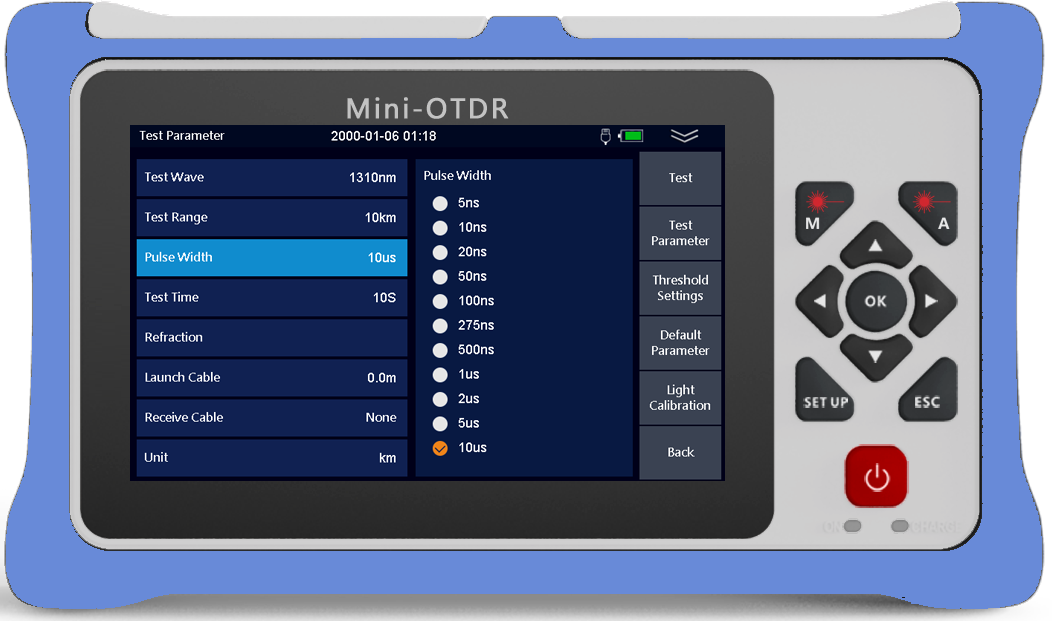

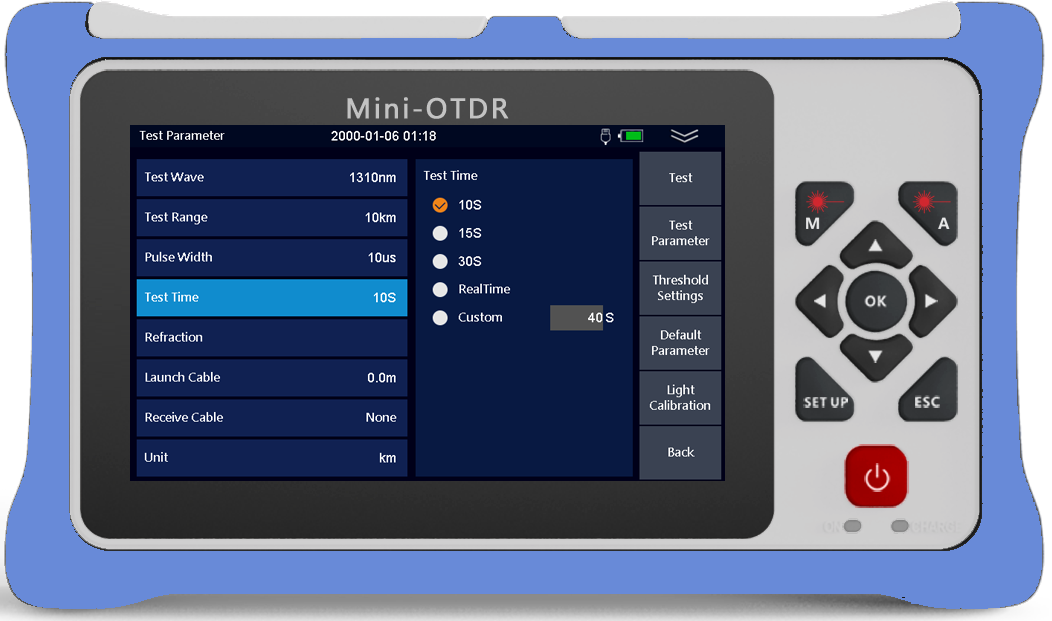

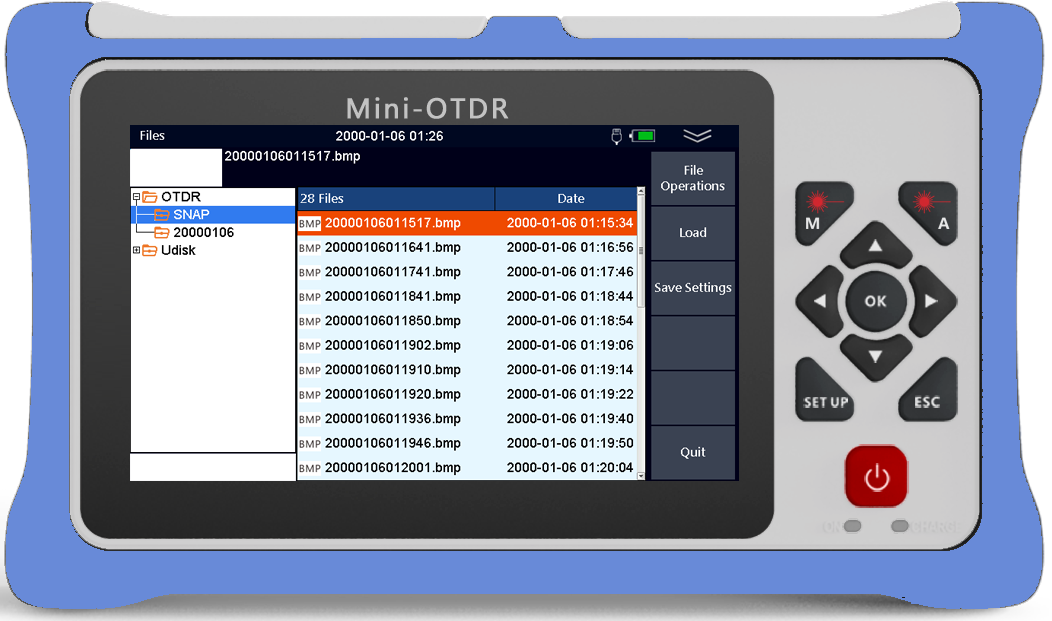

980RTC HANDY MINI OTDR
All in 1 Device, Pocket-sized, Multi Functions, Easy-to-use,
and Affordable for Technicians at Any Level
Features
- Single, dual, and triple wavelength light weight OTDR
- Combines all essential fiber tests in one handheld with OPM, OLS, VFL, etc

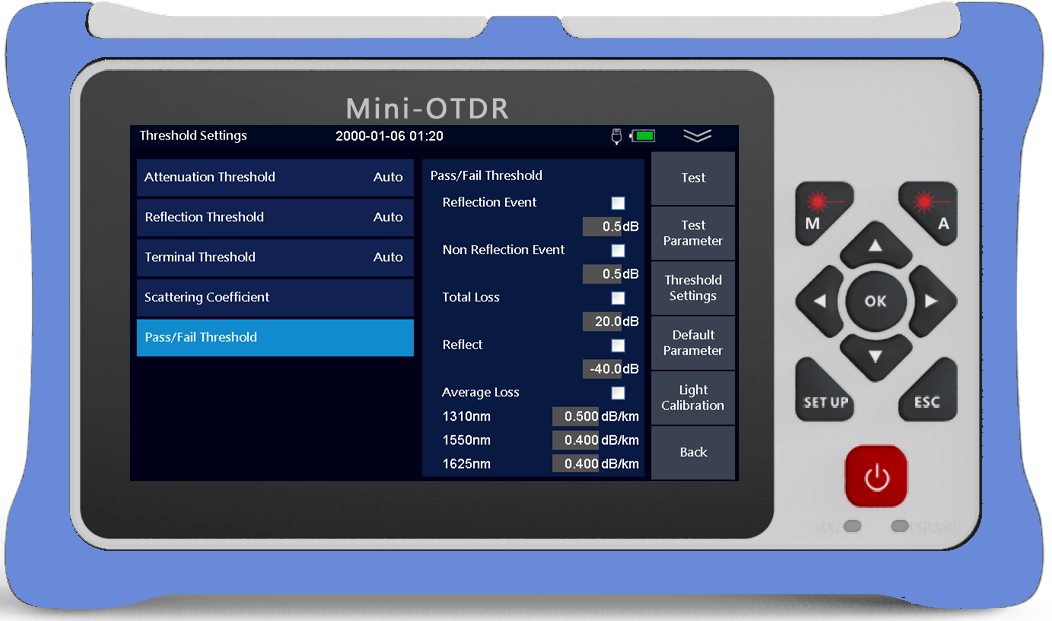

- Easy to understand OTDR analysis with event map result view and pass/fail indications
- Access network or point-to-point network verification or troubleshooting Upgrades easily in the field
- All-day battery life
9 Function in One Device

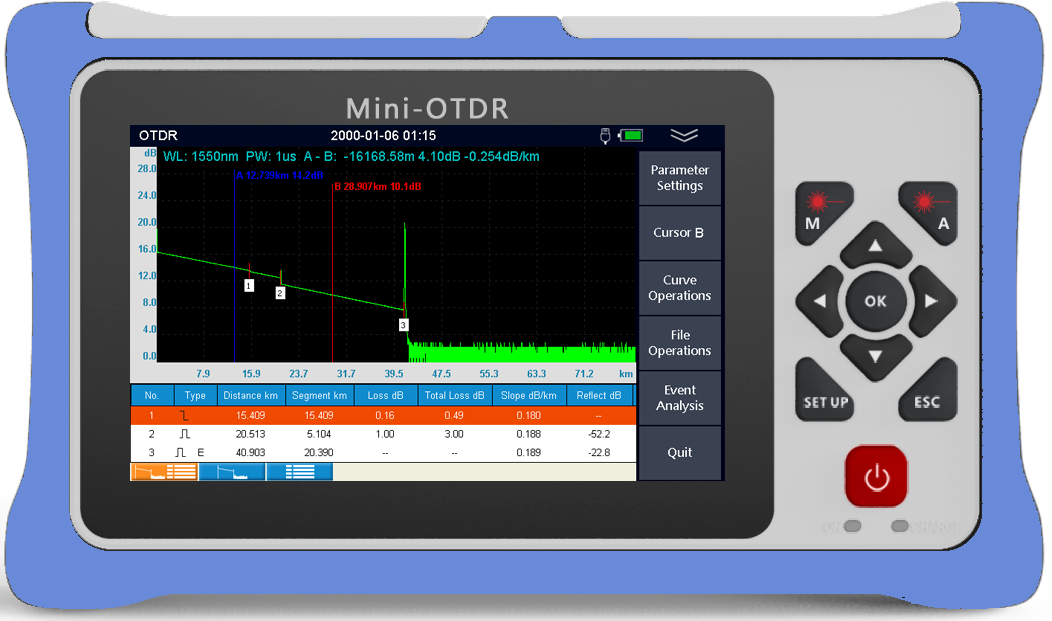

- OTDR

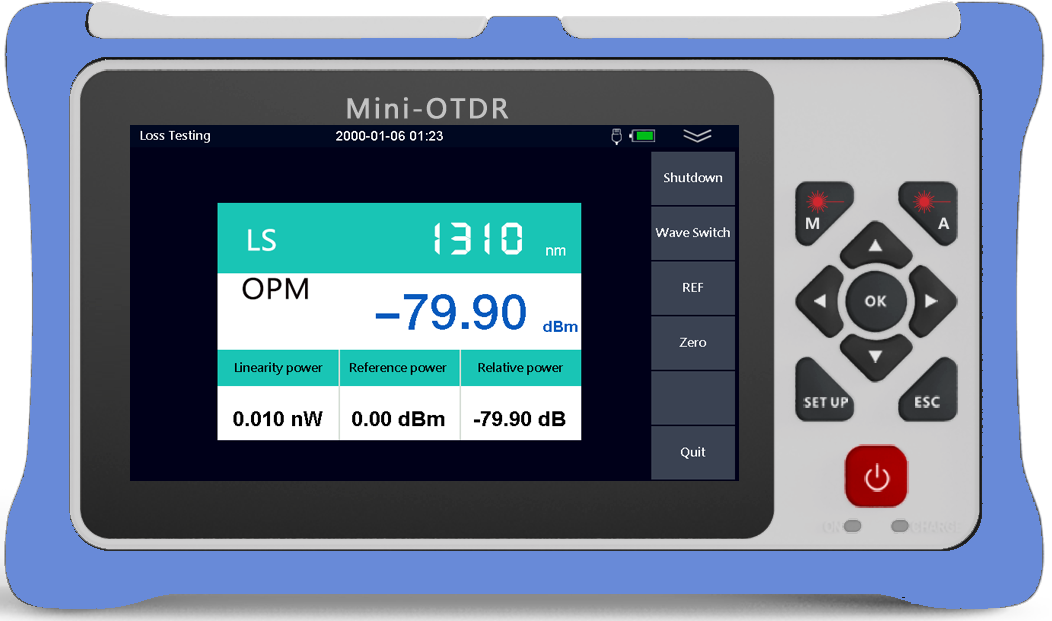

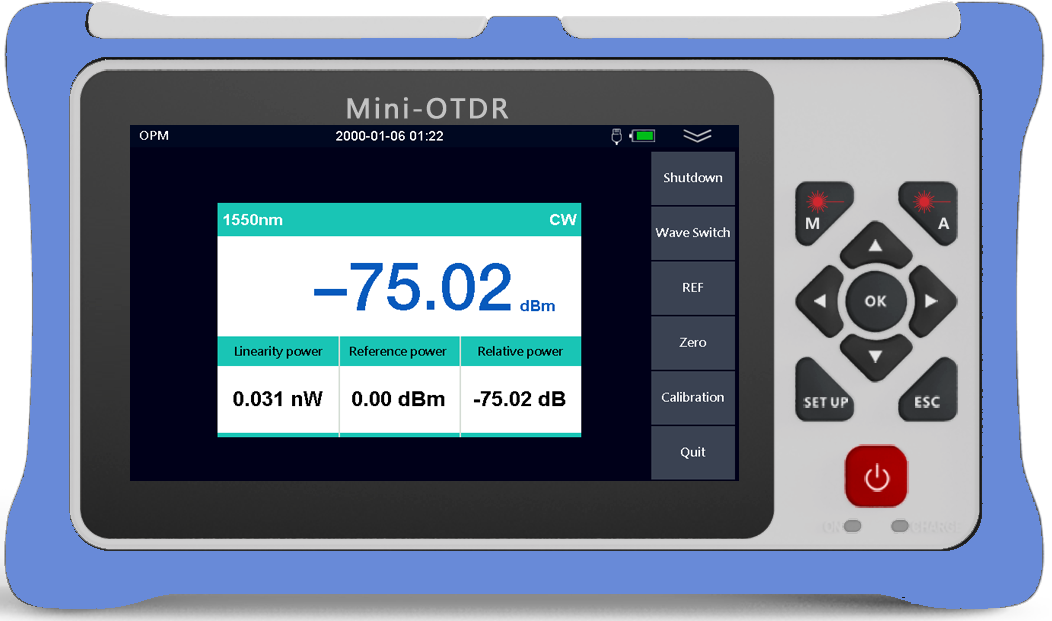

- Optical Power Meter

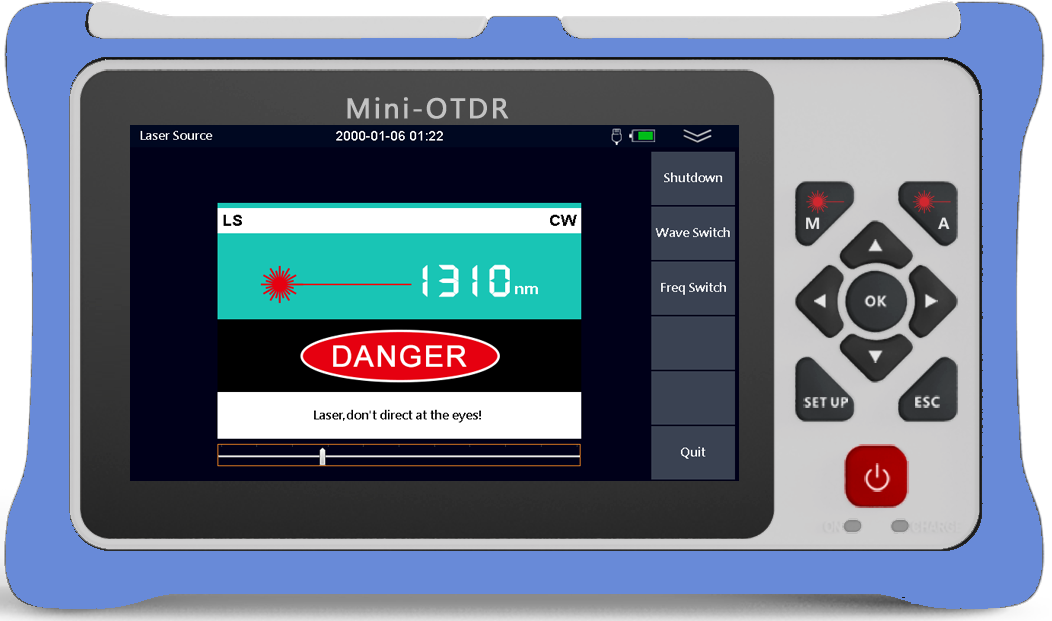

- Optical Light Source
- Visual Fault Locator
- Insertion Loss Testing

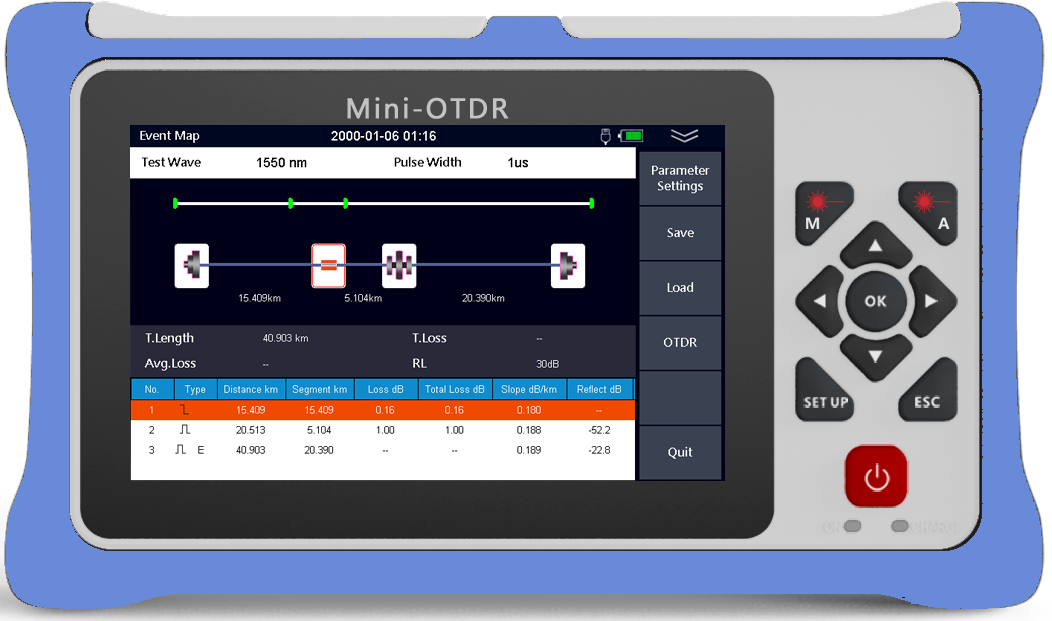

- Event Map
- LED Light

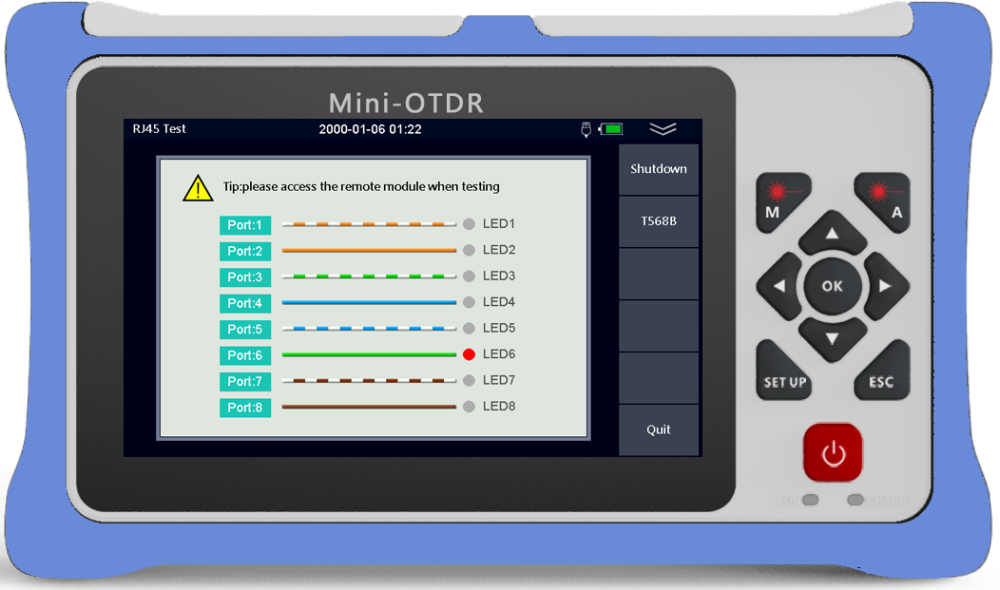

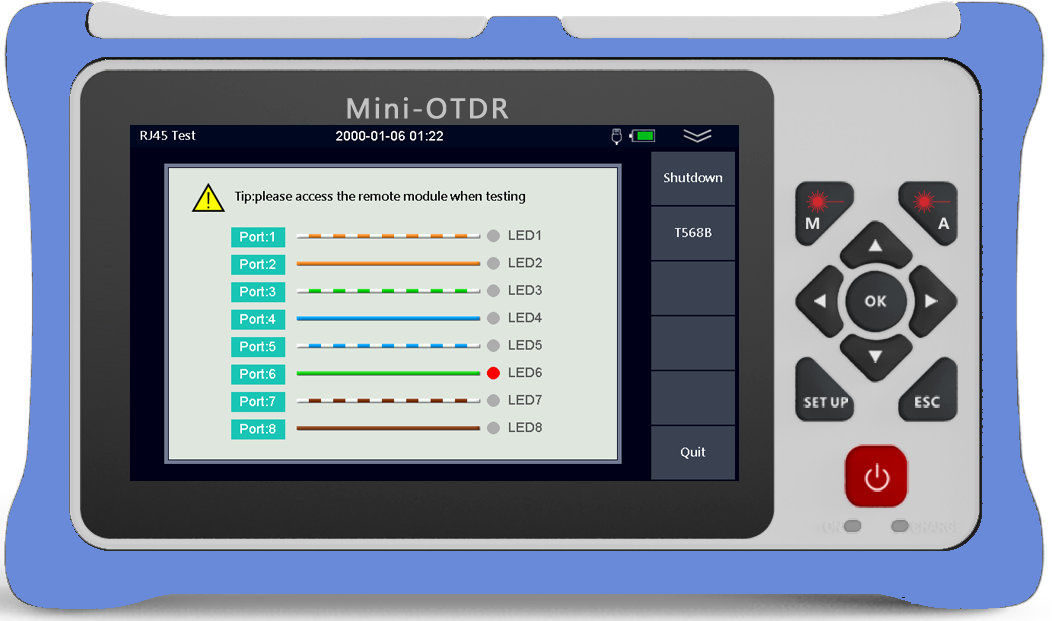

- RJ45 Cable Sequence

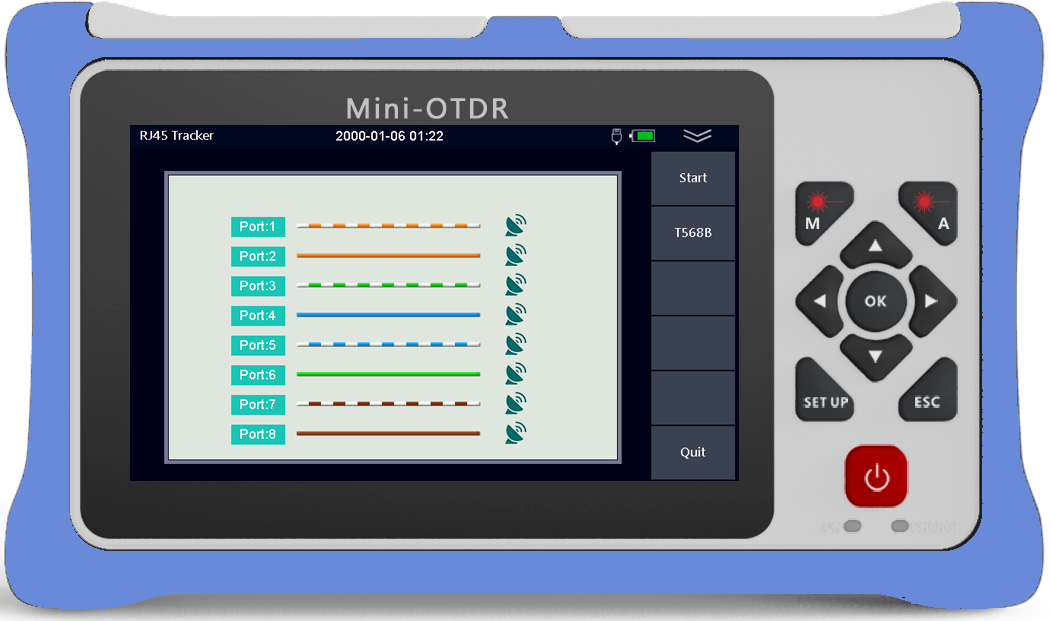

- RJ45 Cable Tracker* Bluetooth is optional
| Model |
980RTC-D26 |
980RTC-D24SF |
980RTC-A26 |
980RTC-B26 |
980RTC |
980RTC-T3 |
980RTC-M24 |
| Wavelength |
1310/1550nm |
1550nm |
1625nm |
1650nm |
1310/1550/1625nm |
1310/1550/1650nm |
850/1300nm |
| Dynamic Range |
26/24dB |
24dB |
26dB |
26dB |
26/24/24dB |
24/22/22dB |
24/22dB |
| Testing Range |
3m to 90km |
3m to 70km |
3m to 90km |
3m to 90km |
3m to 90km |
3m to 90km |
3m to 70km |
| OTDR |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| Event Map |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| Power Meter |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| Light Source |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| VFL |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| Loss Test |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| LED Light |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| RJ45 Sequence |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| RJ45 Sequence |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| 1490nm Online |
x |
√ |
√ |
√ |
√ |
√ |
x |
| 1490nm Online |
x |
x |
√ |
√ |
√ |
√ |
x |
| 1610nm Online |
x |
x |
x |
√ |
√ |
√ |
x |
Note: 980RTC-A26 is with Filter for Online Testing even though 1490/1550nm Light is in Fiber Cable
980RTC-B26 is with Filter for Online Testing even though1490/1550/1610nm light is in Fiber Cable
980RTC is with Filter for Online Testing even though 1490/15501610nm Light is in Fiber Cable
The Kit Includes,
- OTDR
- FC/SC Connector
- OTDRviewer Software
- Power Charging Adapter
- USB Cable
- Carrying Bag
- User Manual
- Certificate of Calibrate
- RJ45 Signal Receiver(optional)

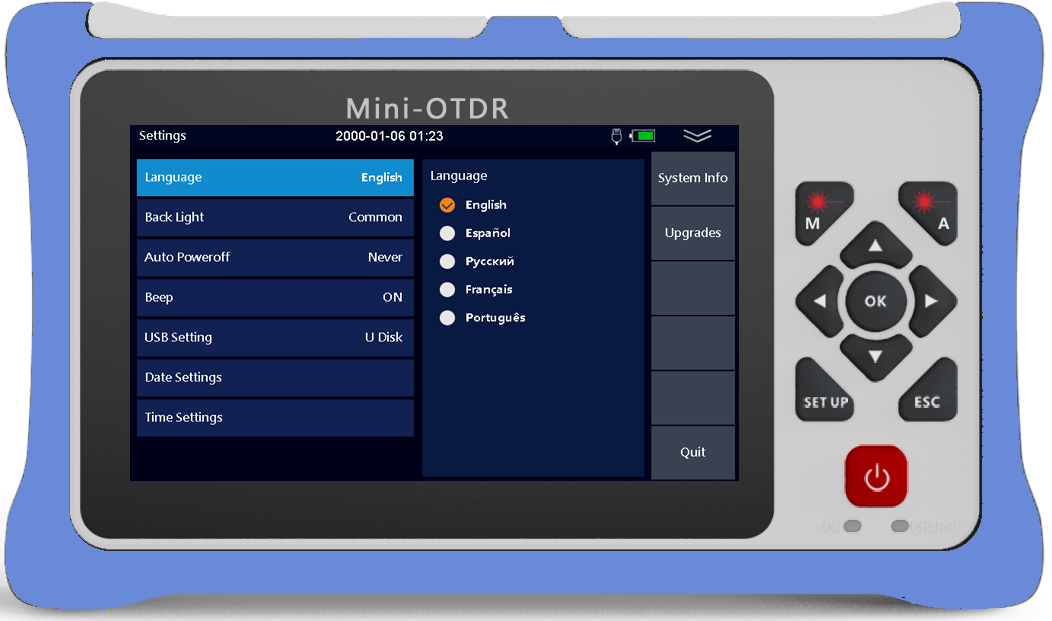

The Menu Languages
- English
- Russian
- Spanish
- French
- Korean
- Thailand
980RTC OTDR Operation Demo
980RTC Short Cable Test
OTDR 980RTC Dead zone
