980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth

Name: 980TEK OTDR Reflectometer with OPM OLS VFL RJ45 Bluetooth
Brand: FirstFiber Technologies
Price: 269 USD
Availability: InStock
Rating: 5.0 (332 reviews)

5.0

687 Sold

$269.00 ~~$299.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Model:

980TEK-D26 (1310/1550nm 26/24dB)

980TEK-P24 (1610nm 24dB)

980TEK-A24 (1625nm 24dB)

980TEK-B24 (1650nm 24dB)
Connector:

SC/APC

SC/UPC

Quantity:

0 in stock

Add to Favorites (1369)

1/1

Description

980TEK OTDR

High Precision, Android UI, Multi Touch,and Ultra-stable for any Cable Testing Situations

Model	980TEK-D26	980TEK-P24	980TEK-A24	980TEK-B24
Wavelength	1310/1550nm	1610nm	1625nm	1650nm
Dynamic Range	26/24dB	24dB	24dB	24dB
Testing Range	3m to 100km	3m to 100km	3m to 100km	3m to 100km
OTDR	√	√	√	√
Event Map	√	√	√	√
Power Meter	√	√	√	√
Light Source	√	√	√	√
Visual Fault Locator	√	√	√	√
LED Light	√	√	√	√
RJ45 Cable Sequence	√	√	√	√
RJ45 Cable Tracking	√	√	√	√
Bluetooth*	√	√	√	√
1490nm Online	x	√	√	√
1550nm Online	x	√	√	√
1610nm Online	x	x	√	√

* Bluetooth function is optional

Note: -P24(1610nm) can test the fiber with1310/1490/1550nm signal in (power <0dBm)

-A24(1625nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <0dBm)

-B24(1650nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <5dBm)

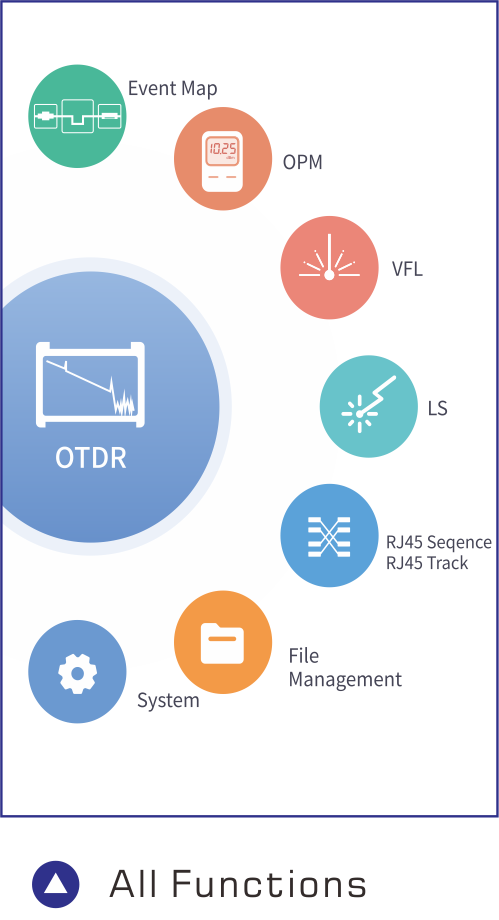

9-in-1 Device

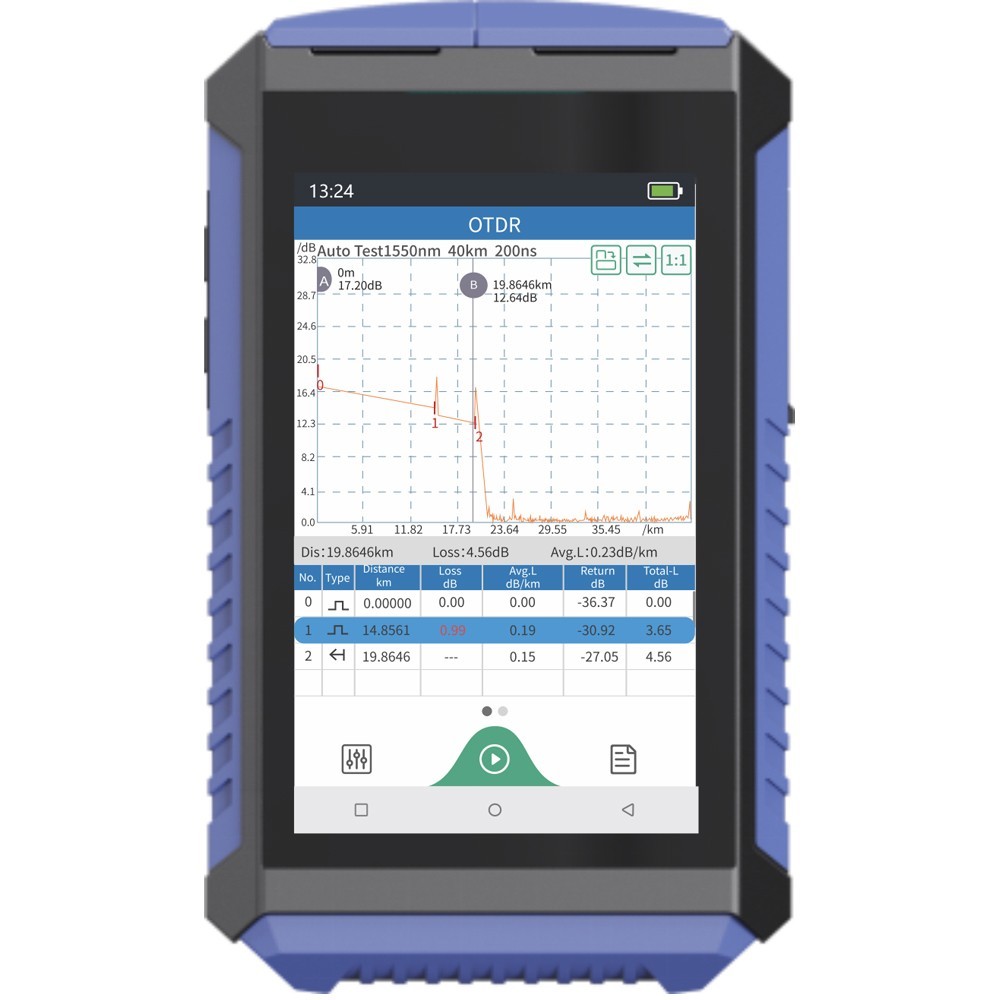

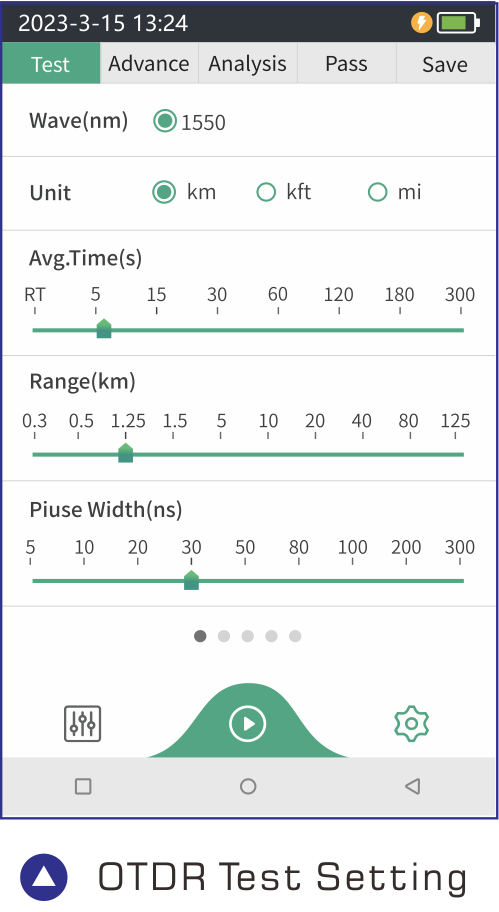

- OTDR

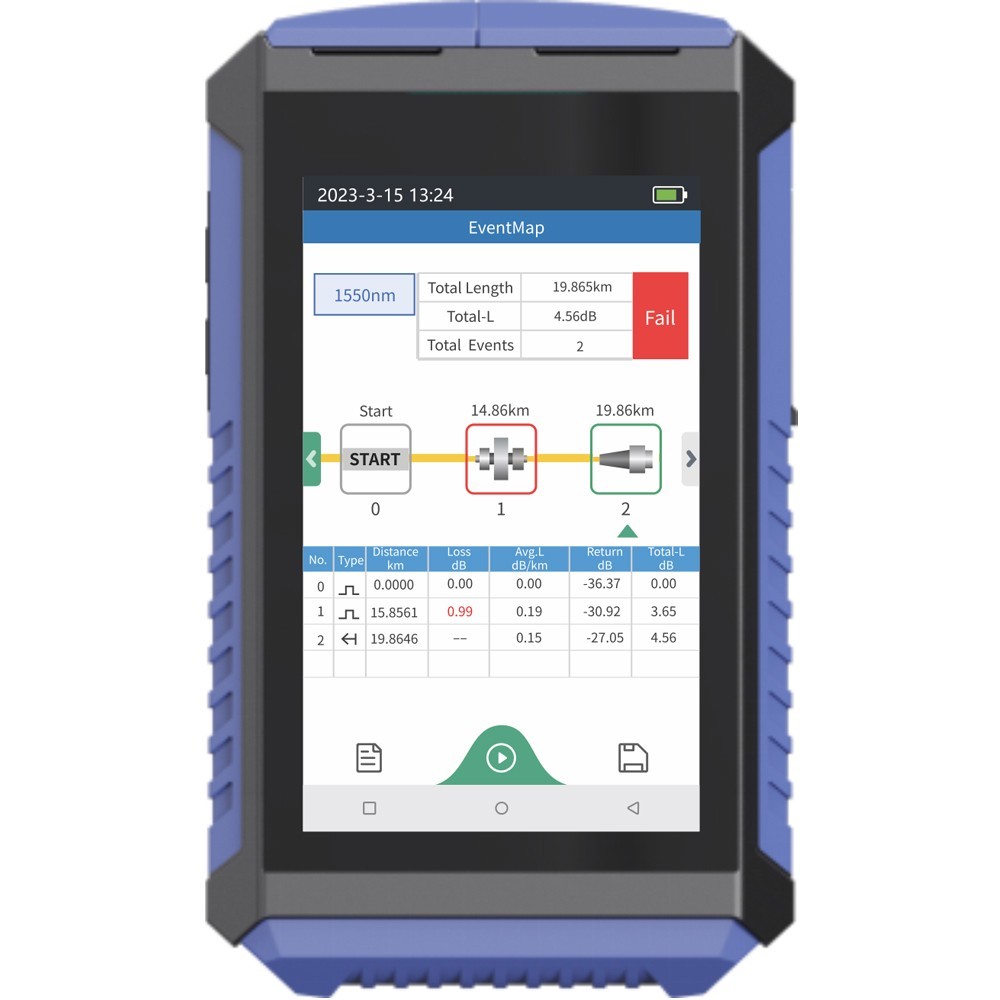

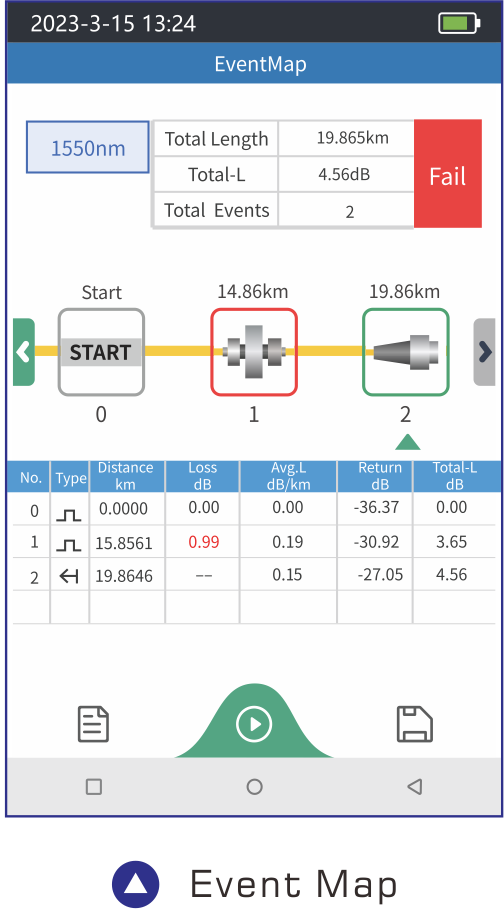

- Event Map

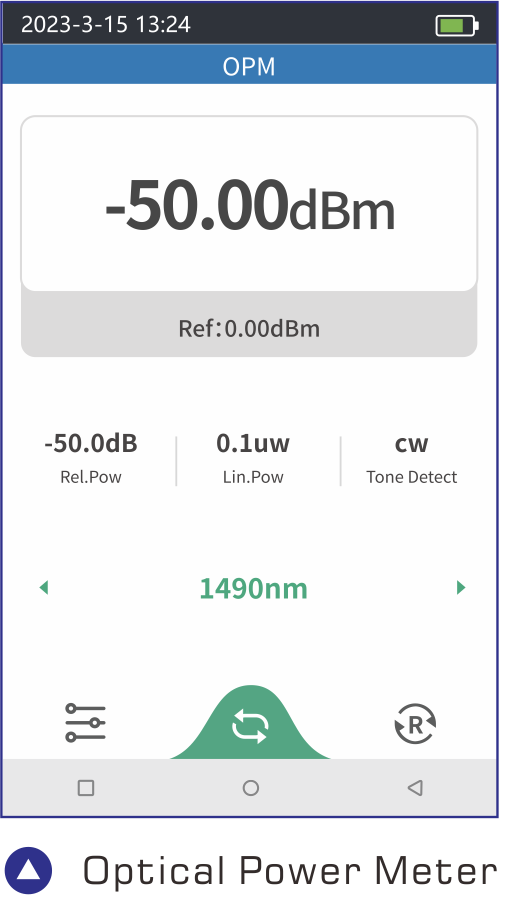

- Optical Power Meter

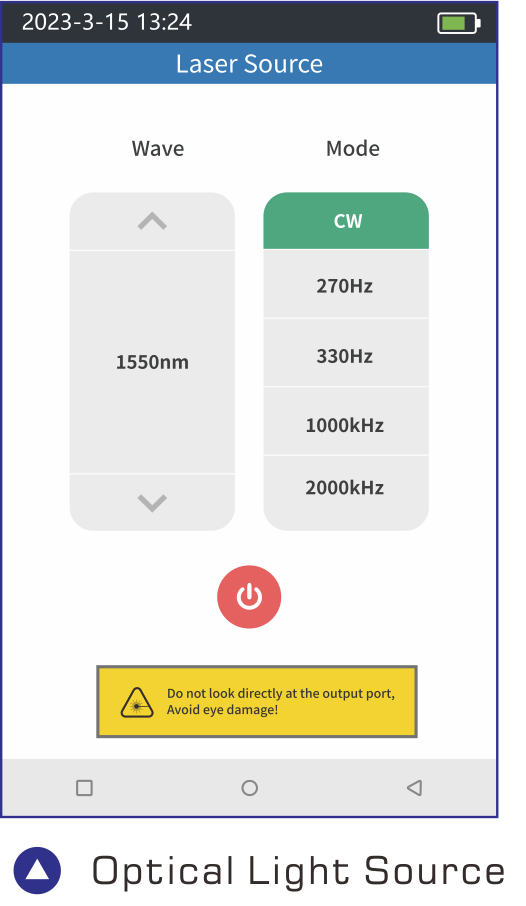

- Optical Light Source

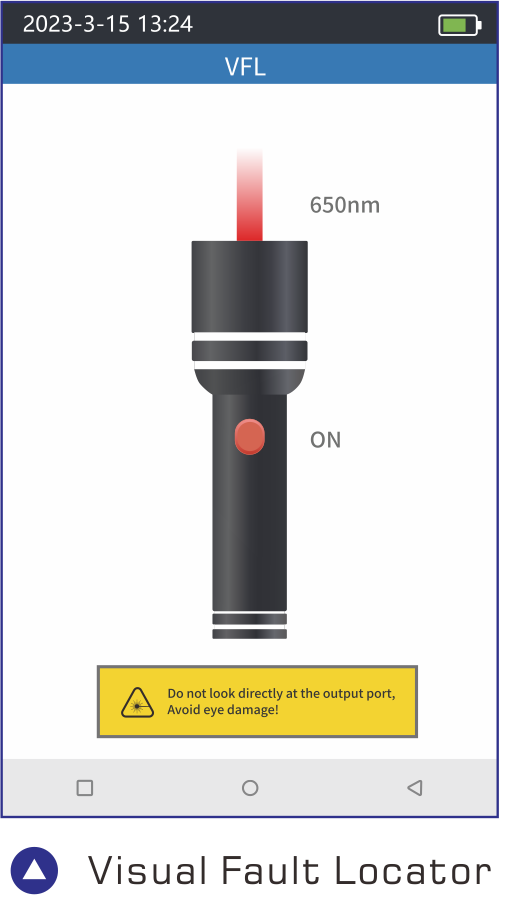

- Visual Fault Locator
- RJ45 Cable Tracking
- RJ45 Cable Sequence
- LED Light
- Bluetooth

The Kit Includes:

> OTDR, User Manual

> TF Card

> OTDRviewer Software

> Power Charging Adapter

> USB Cord

> Carrying Case

> Certificate of Calibrate

980TEK OTDR Operation
