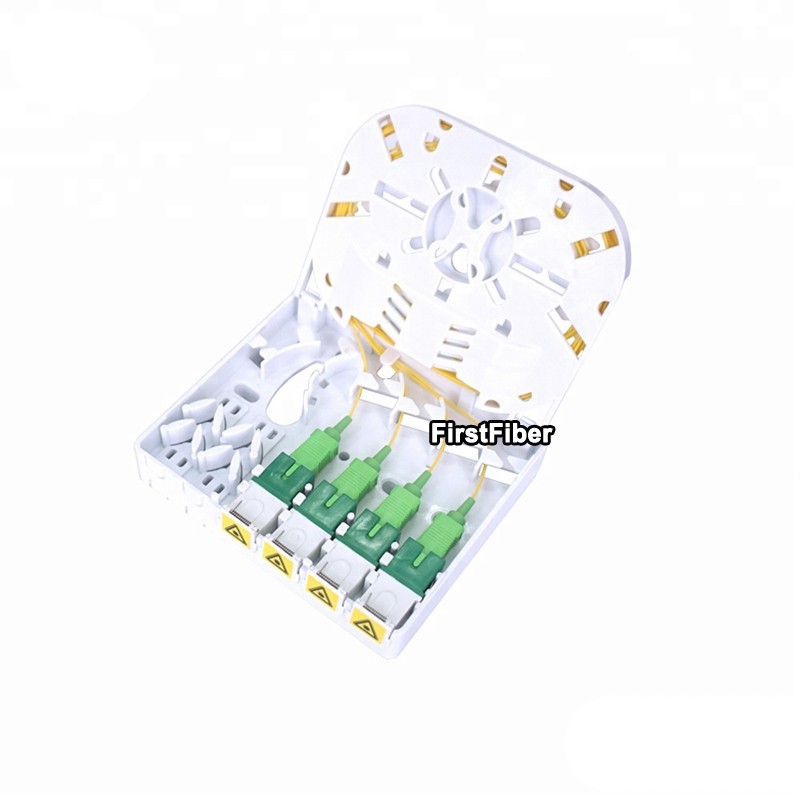

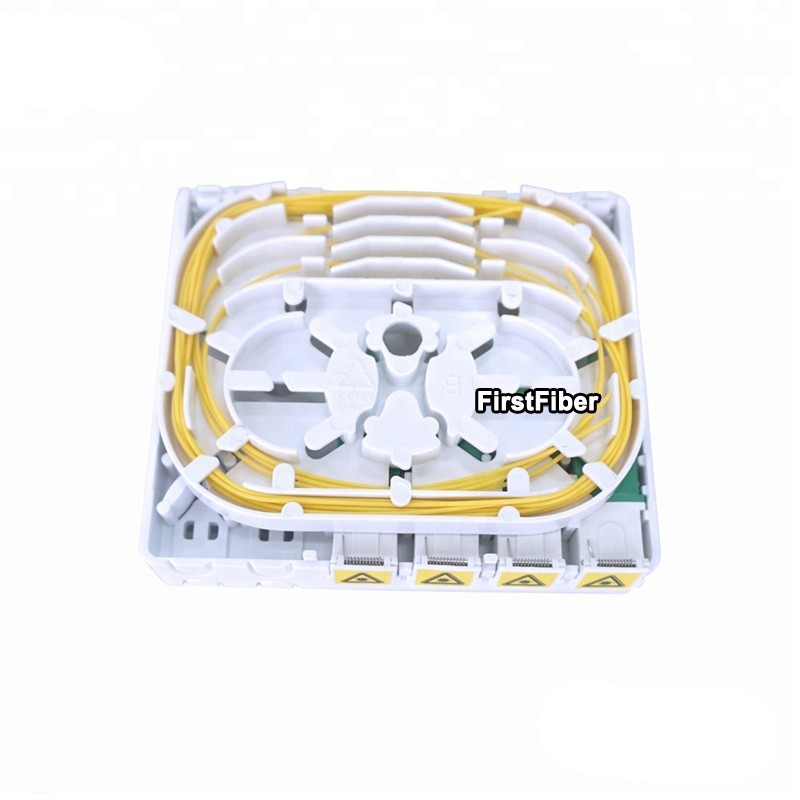

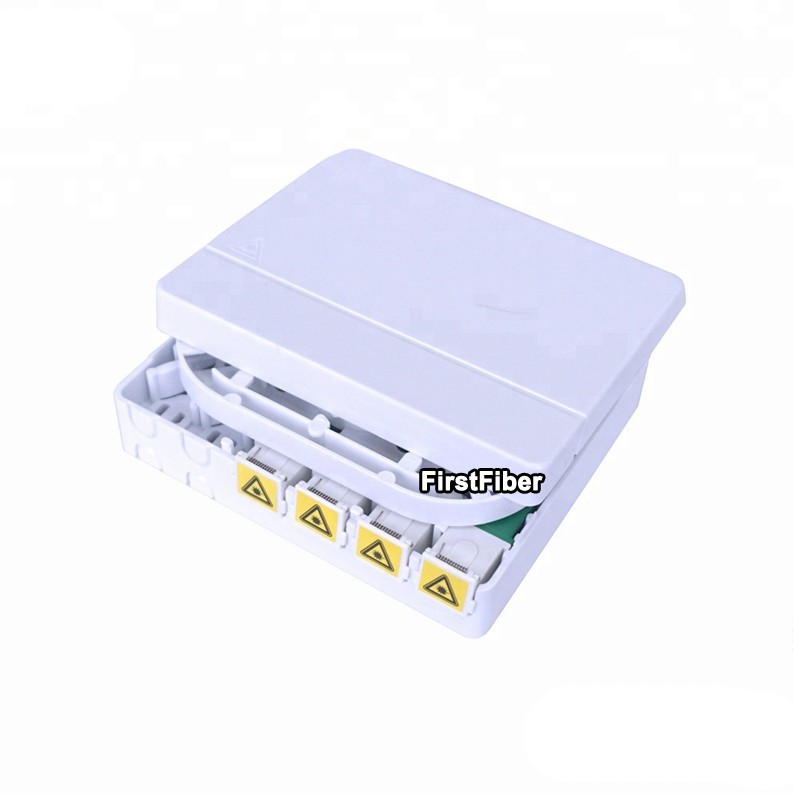

FF-FOS4B is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.
Features
1. Support termination, splicing and storage for fiber optic cable systems
2. Compatible with G.657.
3. Compact structure and perfect fiber management
4. Engineered fiber routing protect bend radius through the unit to ensure signal integrity
5. Applicable for wall-mounted and compatible with flush mounted outlet.
Specifications
|
Parameter
|
Value
|
Remark
|
|
Model
|
FF-FOS4B
|
|
|

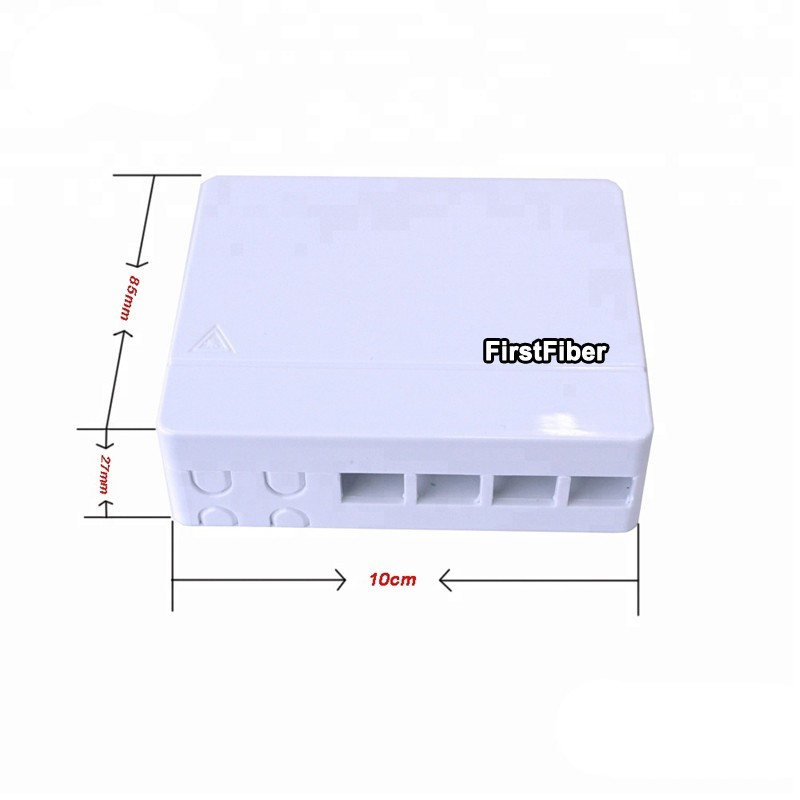

Outside Dimension (mm)
|
100*80*29
|
|
|
Material
|
Plastic
|
|
|
Color
|
White
|
|
|
Storage of fibers
|
G.657
|
|
|
Splice capacity
|
4 single fiber
|
|
|
Splice Method
|
Fusion Splice
|
45mm sleeve
|
|
Adapter type and count
|
4SC or 4 LC Duplex
|
|
|
Input cable
|
3mm or figure 8 (2*3mm)
|
From side or bottom
|
Accessories
|
No.
|
Name
|
Qty.
|
|
1
|
Fiber splice protection sleeve
|
4pcs
|
|
2
|
Expansion bolts for the outlet all-mounted
|
2 set
|
