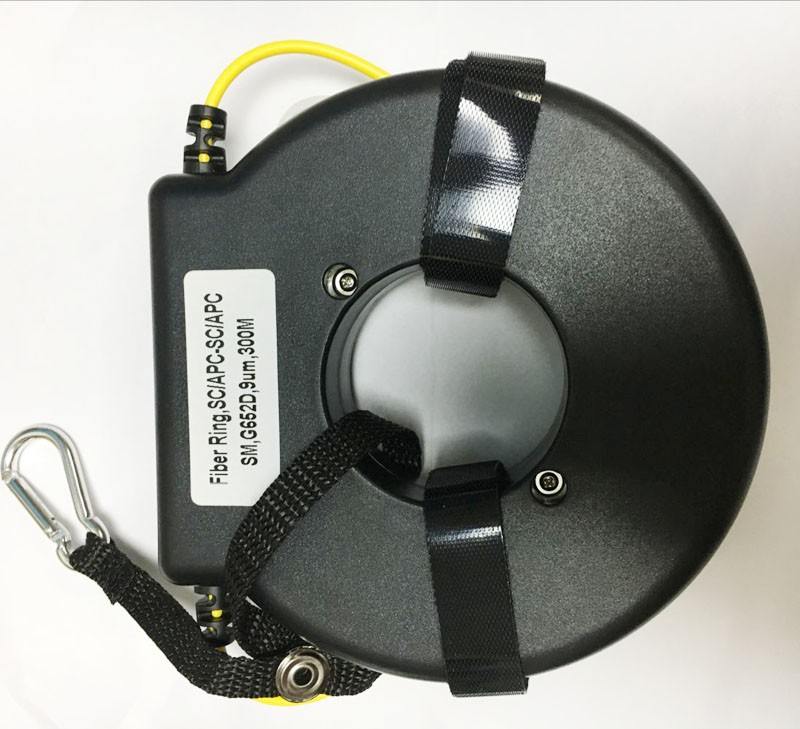

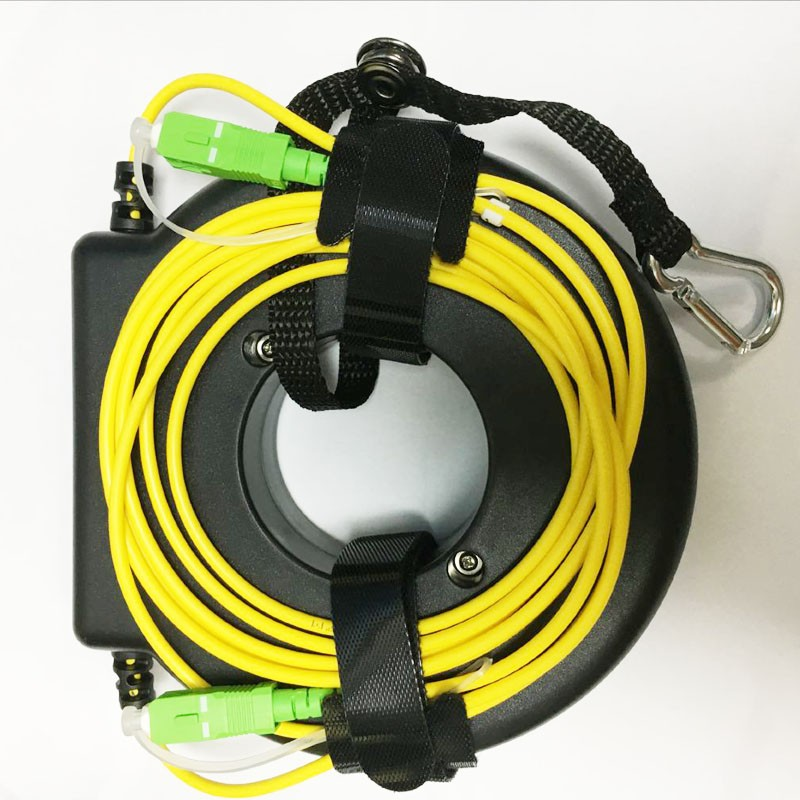

Launch Fiber Real
| Mechanical & Environmental Characteristics |
| Packaging |
Rugged, hard-shell transit case |
| Storage Temperature |
-40℃ to +85℃ |
| Operating Temperature |
-40℃ to +85℃ |
| Humidity |
0 to 95%, non-condensing |
| Fiber & Connector Characteristics |
| Fiber Types |
G657A |
| Fiber Length (m) |
500m/1000m |
| Typical Loss |
<0.5dB @ 1310 for 1000 meters |
| Connector Type |
SC |
| Polish |
UPC/APC |
| Return Loss* |
UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) |
<=0.2 (1000 times) |
| Exchangeability (dB) |
<=0.2 |
Feature & Application
- Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
- Compound Latch for positive seal and easy opening with locking feature.
- Nonmetal construction will not dent, corrode, or conduce electricity
- Water and dust proof allowing the unit to be taken into almost any environmen
- Auto Purge Valve for changes in altitude and temperature
